Hidayatullah, Akhmad Fauzie (2024) PERBANDINGAN PROFIL DENGAN STURKTUR KONFIGURASI JEMBATAN PEDESTRIAN RANGKA BAJA DECK TYPE TRUSS BENTANG 31 m (Studi Kasus pada Jembatan Rangka Baja KJI XVII Tahun 2022 di UPJ Tangerang : Nawasena Bridge). Undergraduate thesis, Universitas Muhammadiyah Malang.

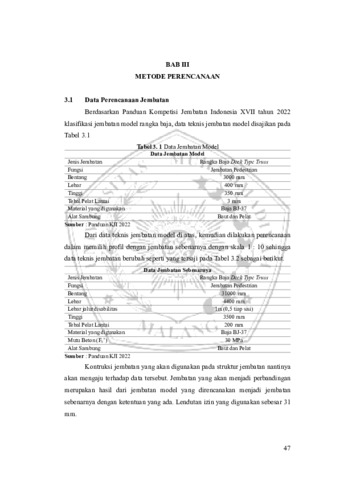

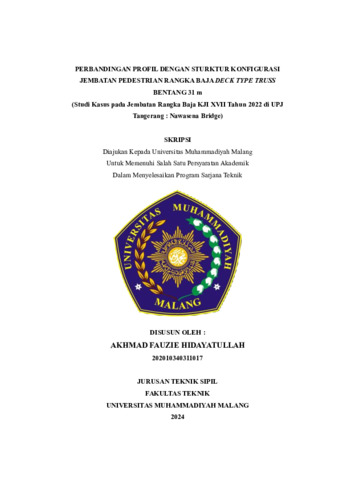

PENDAHULUAN.pdf
Download (1MB) | Preview

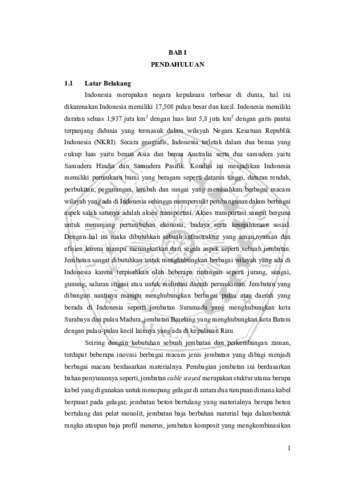

BAB I.pdf
Download (190kB) | Preview

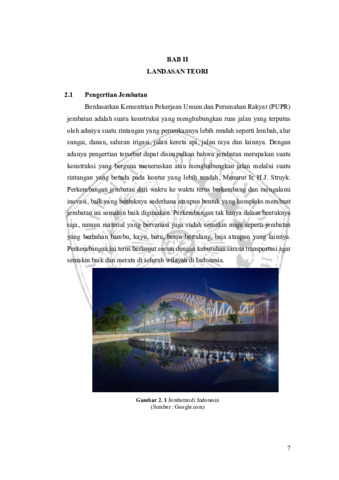

BAB II.pdf
Download (1MB) | Preview
BAB III.pdf
Download (292kB) | Preview
![[thumbnail of BAB IV.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
BAB IV.pdf
Restricted to Registered users only
Download (991kB) | Request a copy
![[thumbnail of BAB V.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
BAB V.pdf
Restricted to Registered users only
Download (205kB) | Request a copy
![[thumbnail of LAMPIRAN.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
LAMPIRAN.pdf
Restricted to Registered users only
Download (7MB) | Request a copy
![[thumbnail of POSTER.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
POSTER.pdf
Restricted to Registered users only
Download (148kB) | Request a copy
Abstract
Indonesia is the largest archipelagic country in the world, this is because Indonesia has 17,508 large and small islands. Indonesia has a land area of 1.937 million km2 with a sea area of 5.8 million km2 with the longest coastline in the world separated by valleys, plateaus, rivers and others. Therefore, infrastructure is needed in the form of bridges to connect separated areas. At the KJI XVII 2022 event, there are several competition classifications, one of which is steel frame bridges with carbon steel material. However, this type of profile is very rarely found in the field on actual bridges, so the author carried out a profile comparison between Wide Flange and Double Channel and converted the actual bridge to a scale of 1:10. From the results of the analysis carried out by the author, the deflection on the Wide Flange profile was obtained with a deflection of 1.05 mm and the deflection on the Double Channel profile with a deflection of 2.36 mm which is in accordance with the provisions below the permit deflection of 31 mm. The cross-sectional areas of the two profiles have also been equalized, so that there is a strong comparison between the two profiles. A bridge with a Wide Flange profile has a bridge weight of 39,081 kg and a Double Channel profile bridge has a bridge weight of 40,325.46 kg. From these two results, the Wide Flange profile was chosen as the bridge profile that makes up the bridge because it is economical compared to bridges with a Double Channel profile.
Item Type: | Thesis (Undergraduate) |
---|---|
Student ID: | 202010340311017 |
Keywords: | Steel Frame Bridge, Profile Comparison, Sap 2000, Kji XVII |
Subjects: | T Technology > TA Engineering (General). Civil engineering (General) T Technology > TG Bridge engineering |
Divisions: | Faculty of Engineering > Department of Civil Engineering (22201) |
Depositing User: | 202010340311017 akhmadfauzie189 |
Date Deposited: | 12 Aug 2024 08:13 |
Last Modified: | 12 Aug 2024 08:13 |
URI: | https://eprints.umm.ac.id/id/eprint/10056 |
