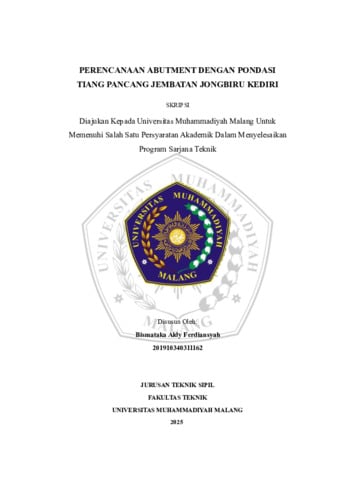

PERENCANAAN ABUTMENT DENGAN PONDASI TIANG PANCANG JEMBATAN JONGBIRU KEDIRI

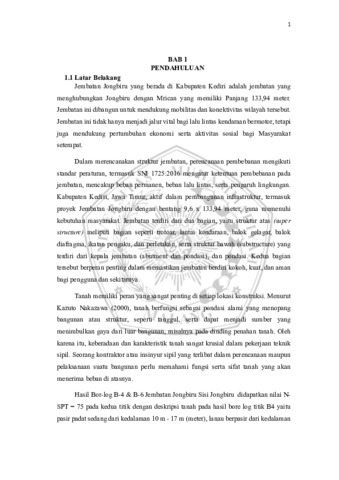

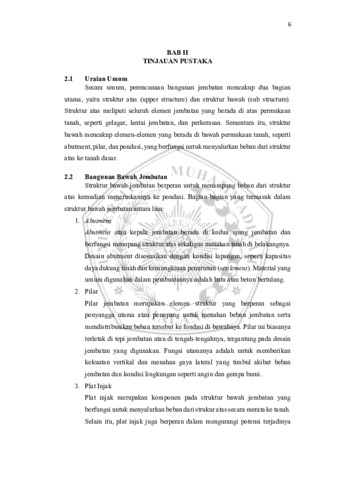

Jongbiru Bridge is a bridge that connects Jongbiru with Mrican. It has a total length of 133.49 meters with a road width of 9.00 meters. Soil investigation was carried out using the Standard Penetration Test (SPT) method, the results of each layer were dominated by sandy and silt soil to a depth of 30 meters. The abutment is planned with dimensions of 8.1 meters x 12.6 meters. The abutment reinforcement on the (breast wall) uses 26D-25 mm reinforcement and 13D-300 mm shear reinforcement, and the reinforcement for the vertical and horizontal directions uses D22-125 reinforcement. The pile cap is planned to be 8.1 meters x 12.6 meters with reinforcement dimensions of D50-250 mm and reinforcement for D25-125 mm. And the settlement uses the largest total immediate settlement that occurs at the abutment of 3.599 cm.
