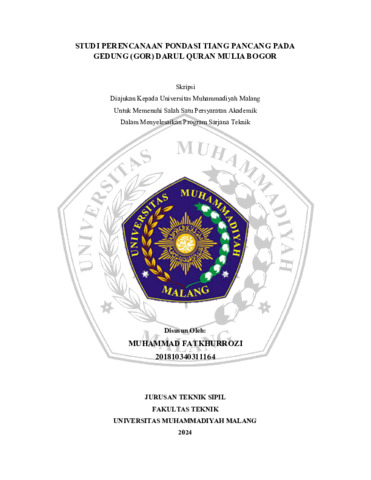

STUDI PERENCANAAN PONDASI TIANG PANCANG PADA GEDUNG (GOR) DARUL QURAN MULIA BOGOR

The Darul Mulia Bogor Sports Hall located on Jl. Pembangunan, Gn. Sindur District, Bogor Regency, West Java 16340, has a building area of 2106 m². With a function as a sports and multipurpose building. The sports hall building with a rectangular shape is 54 m long and 39 m wide, with a height of 15,5 m. Replanned to support the upper structure building with a Spun Pile pile foundation. Based on the calculation of the upper structure using etabs software, the largest axial load occurs in column C-34 1606 kN. In the planning using 350 mm piles 12 m deep, with consideration of the Drill Log on the ground which has one BH-1 point based on the results of the N SPT in determining hard soil. There are 3 types of Pile Cap are square 105 cm x 105 cm, rectangular 105 cm x 170 cm and square-trapezoid 140 cm x 140 cm, while for longitudinal reinforcement in the x and y directions used D25-300 (compression) D25-150 (tension) and shrinkage reinforcement used D22-175. The largest immediate total settlement and consolidation that occurred in column C-34 was 0.946 cm.
