PERENCANAAN TEKNIS JEMBATAN BANDAR NGALIM, KOTA KEDIRI.

Rizqi, Fathur and Onnasis, Sendy Brian and Arzana, Dinun Ahmad (2024) PERENCANAAN TEKNIS JEMBATAN BANDAR NGALIM, KOTA KEDIRI. Undergraduate thesis, Universitas Muhammadiyah Malang.

[thumbnail of PENDAHULUAN.pdf]
Preview
Text
PENDAHULUAN.pdf

Download (2MB) | Preview

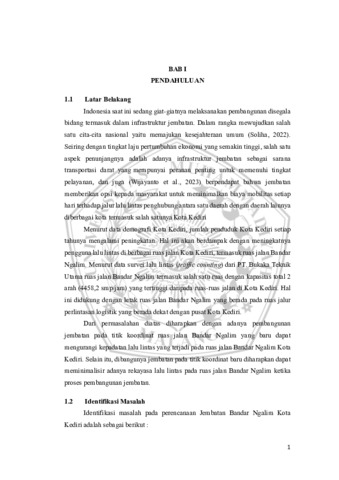

[thumbnail of BAB 1.pdf]
Preview
Text
BAB 1.pdf

Download (417kB) | Preview

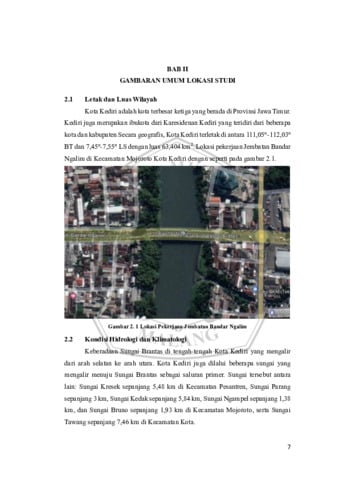

[thumbnail of BAB 2.pdf]
Preview
Text
BAB 2.pdf

Download (464kB) | Preview

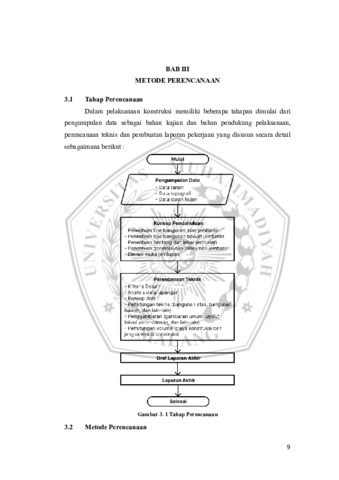

[thumbnail of BAB 3.pdf]
Preview
Text
BAB 3.pdf

Download (785kB) | Preview
[thumbnail of BAB 4.pdf] Text
BAB 4.pdf
Restricted to Registered users only

Download (348kB) | Request a copy
[thumbnail of BAB 5.pdf] Text
BAB 5.pdf
Restricted to Registered users only

Download (8MB) | Request a copy
[thumbnail of BAB 6.pdf] Text
BAB 6.pdf
Restricted to Registered users only

Download (441kB) | Request a copy
[thumbnail of BAB 7.pdf] Text
BAB 7.pdf
Restricted to Registered users only

Download (605kB) | Request a copy
[thumbnail of LAMPIRAN.pdf]
Preview
Text
LAMPIRAN.pdf

Download (11MB) | Preview
[thumbnail of POSTER.pdf]
Preview
Text
POSTER.pdf

Download (216kB) | Preview

Abstract

Kediri City has several road segments that cross the Brantas River. The Bandar Ngalim road segment as a national logistics crossing, has the second highest road capacity in Kediri City. The limitations of bridges in carrying loads pose a risk of collapse due to dynamic loads. Therefore, the construction of the second Bandar Ngalim bridge is necessary to reduce traffic congestion and develop the national logistics system. The planned bridge will be a half-through arch type and a girder bridge, using SAP2000v22 software for analysis along with the abutments and bridge piers. Based on geometric design and control results, the specifications for the arch structure utilize an IWF profile with a maximum deflection of 68.571 mm, while the girder structure uses pre-stressed concrete PC I H170 with a maximum deflection of 1.974 mm. The substructure includes abutments, piers, and foundations. According to calculations, the abutment requires 5x2 bored pile foundations with a diameter (d) of 1.00 m, spaced 3.00 m apart and driven to a depth of 19.00 m. The maximum vertical load capacity is 1459.72 kN, with a lateral load capacity of 821.76 kN per pile. For the piers, 4x4 bored pile foundations with a diameter (d) of 1.00 m are needed, driven to a depth of 32.00 m to achieve a maximum vertical load capacity of 3657.21 kN and a lateral load capacity of 4800.00 kN per pile. The construction of the bridge is expected to take 329 days, with a total budget of IDR 81,058,094,021.

Item Type: Thesis (Undergraduate)
Student ID: 201910340311056, 201910340311047, 201910340311025
Keywords: Bridge; Superstructure; Substructure; Construction Management; Kediri City
Subjects: T Technology > TG Bridge engineering
Divisions: Faculty of Engineering > Department of Civil Engineering (22201)
Depositing User: 201910340311056 dinunahmadarzana
Date Deposited: 04 Nov 2024 08:57
Last Modified: 04 Nov 2024 08:57
