Studi Evaluasi Dan Perencanaan Sistem Drainase Jalan Cengger Ayam Kota Malang

Asshidiqy, Jimly (2024) Studi Evaluasi Dan Perencanaan Sistem Drainase Jalan Cengger Ayam Kota Malang. Undergraduate thesis, Universitas Muhammadiyah Malang.

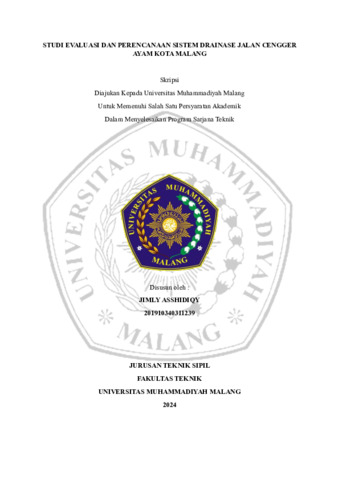

[thumbnail of PENDAHULUAN.pdf]
Preview
Text
PENDAHULUAN.pdf

Download (2MB) | Preview

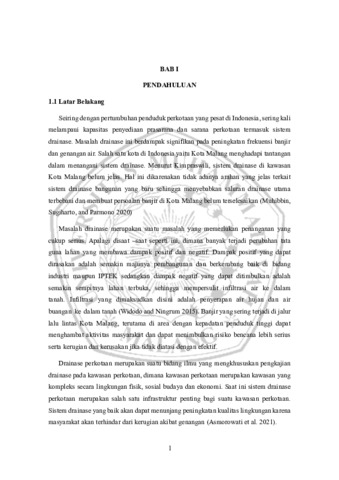

[thumbnail of BAB I.pdf]
Preview
Text
BAB I.pdf

Download (389kB) | Preview

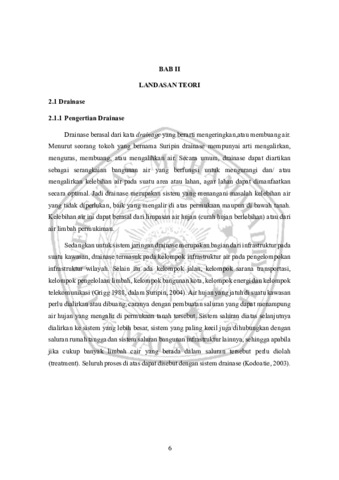

[thumbnail of BAB II.pdf]
Preview
Text
BAB II.pdf

Download (484kB) | Preview

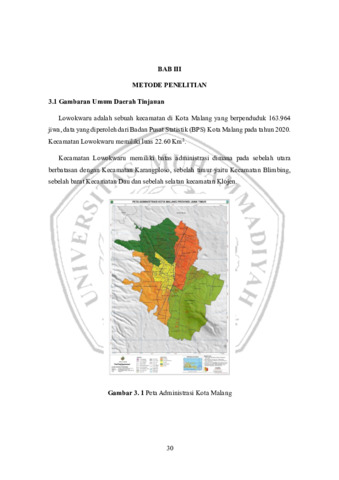

[thumbnail of BAB III.pdf]
Preview
Text
BAB III.pdf

Download (610kB) | Preview
[thumbnail of BAB IV.pdf] Text
BAB IV.pdf
Restricted to Registered users only

Download (952kB) | Request a copy
[thumbnail of BAB V.pdf] Text
BAB V.pdf
Restricted to Registered users only

Download (257kB) | Request a copy

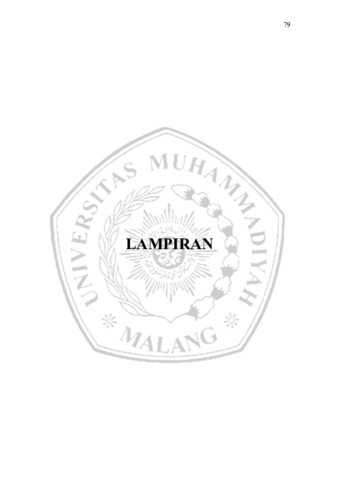

[thumbnail of LAMPIRAN.pdf]
Preview
Text
LAMPIRAN.pdf

Download (1MB) | Preview

Abstract

Drainage problems have a significant impact on increasing the frequency of flooding and waterlogging. Drainage problems are a problem that requires serious handling. Jalan Cengger Ayam, which is 710.67 meters long and is included in the secondary local road network which is a connecting road between the center of the environment and the surrounding settlements and is the main road in the area. On the road there has been a flood caused by overflow from the drainage channel. The overflow occurred because the drainage channel was unable to accommodate the high water discharge due to the rain that occurred. The flood disrupted community activities on Jalan Cengger Ayam, Malang City.
The purpose of this study was to evaluate flood discharge based on 2-year design rainfall, measure the discharge of dirty water entering the drainage channel, assess the capacity of the existing drainage channel, and design a budget for planning a new drainage channel on Jalan Cengger Ayam, Malang City. Rainwater discharge can be calculated by analyzing the dimensions of the channel based on the amount of rainwater discharge that will be channeled using the rational method. This method can describe the relationship between runoff discharge and rainfall for a watershed area of up to 300 ha.
The results showed that (1) The maximum rainfall with a 2-year return period in the study area was 97.72 mm and the design flood discharge was 0.023 m3/s. (2) Some existing channels cannot accommodate the existing design flood discharge. The channels in question include: SS. CAD KI 3, SS - SP. CAD - CA KA 5 and SP. CA KA 1. (3) There are channels that are unable to accommodate the design flood discharge and need to be re-planned in the SS. CAD KI 3, SS - SP. CAD - CA KA 5 and SP. CA KA 1 SP. (4) The cost required to evaluate the drainage system of Jalan Cengger Ayam is Rp. 121,865,177.3.

Item Type: Thesis (Undergraduate)
Student ID: 201910340311239
Keywords: Drainage, Rational Method, Cost Budget Plan
Subjects: T Technology > TA Engineering (General). Civil engineering (General)
Divisions: Faculty of Engineering > Department of Civil Engineering (22201)
Depositing User: 201910340311239 jimmydirectionersgmailcom
Date Deposited: 04 Nov 2024 08:37
Last Modified: 04 Nov 2024 08:37
URI: https://eprints.umm.ac.id/id/eprint/12180
