Ramadana, Rifky (2024) STUDI PERENCANAAN PONDASI TIANG PANCANG PADA PEMBANGUNAN GEDUNG SEKOLAH KRISTEN GLORIA GRAND PAKUWON. Undergraduate thesis, Universitas Muhammadiyah Malang.

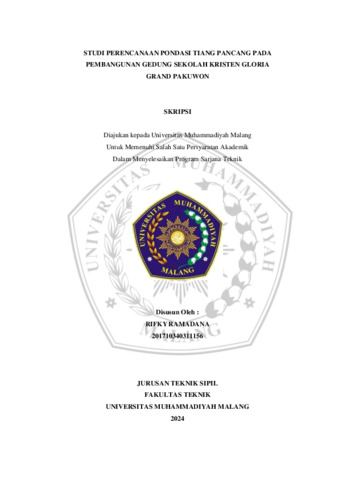

PENDAHULUAN.pdf
Download (809kB) | Preview

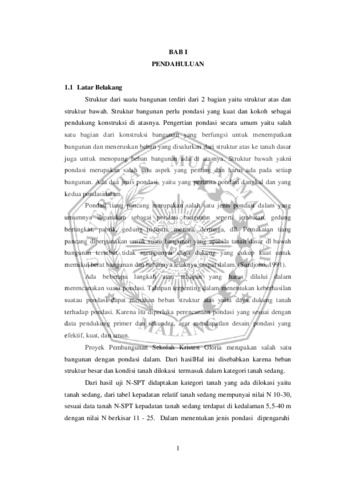

BAB I.pdf
Download (529kB) | Preview

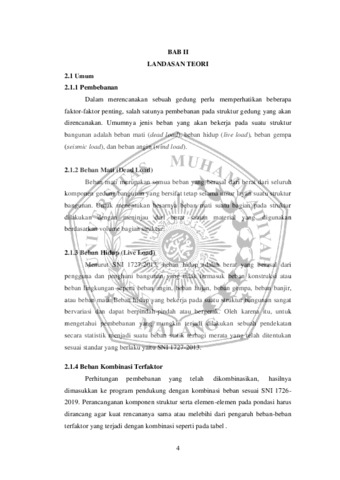

BAB II.pdf
Download (3MB) | Preview

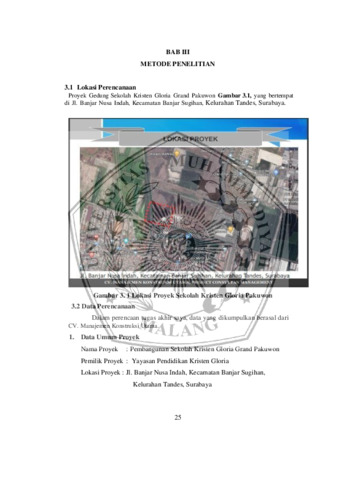

BAB III.pdf
Download (545kB) | Preview
![[thumbnail of BAB IV.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
BAB IV.pdf
Restricted to Registered users only
Download (8MB) | Request a copy
![[thumbnail of BAB V.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
BAB V.pdf
Restricted to Registered users only
Download (155kB) | Request a copy
![[thumbnail of LAMPIRAN.pdf]](https://eprints.umm.ac.id/style/images/fileicons/text.png)
LAMPIRAN.pdf
Restricted to Registered users only
Download (7MB) | Request a copy
Abstract
The building structure consists of 2 parts, namely the upper structure and the lower structure. The pile foundation is one type of deep foundation that is commonly used as the foundation of buildings such as bridges, high-rise buildings, factories, industrial buildings, towers, etc. Gloria Grand Pakuwon Christian School is one form of high-rise building. The 6-story building is 30.5 meters high and 17.9 meters wide. The floor use load is based on SNI 1727:2019 and analyzed with the supporting applicationSSap 2000 v14.2.2. The existing condition of the foundation is a pile foundation. In this thesis, it is planned to use spun pile type piles. Based on the results of the analysis and calculation of the loading of the upper structure, the largest loadPPu = 3594.878 kN is obtained. For the calculation of foundation support capacity, the foundation depth is planned to be 40 meters deep with a diameter of 0.8 meters and where per group with 2 piles with an efficiency of 89.7%, a support capacity of 5375.17 kN is obtained, while for 1 pile with an efficiency of 1oo%, a support capacity of 2995.64 kN is obtained. pile cap reinforcement uses D19-150 mm shrinkage D19-150 mm reinforcement. The largest immediate settlement was 0.00305 m and the largest consolidation settlement was 0.02715 m.
Item Type: | Thesis (Undergraduate) |
---|---|
Student ID: | NIM201710340311156 |
Keywords: | Deep Foundaton, Pile Foundation,Bearing Capacity,Settelment |
Subjects: | T Technology > TA Engineering (General). Civil engineering (General) |
Divisions: | Faculty of Engineering > Department of Civil Engineering (22201) |
Depositing User: | 201710340311156 rifkyronto99 |
Date Deposited: | 15 Aug 2024 05:58 |
Last Modified: | 15 Aug 2024 05:58 |
URI: | https://eprints.umm.ac.id/id/eprint/10362 |
