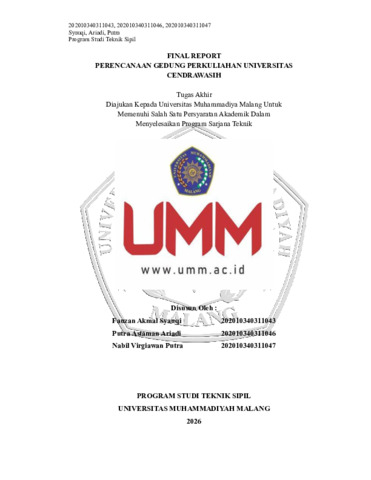

PERENCANAAN GEDUNG PERKULIAHAN UNIVERSITAS CENDRAWASIH

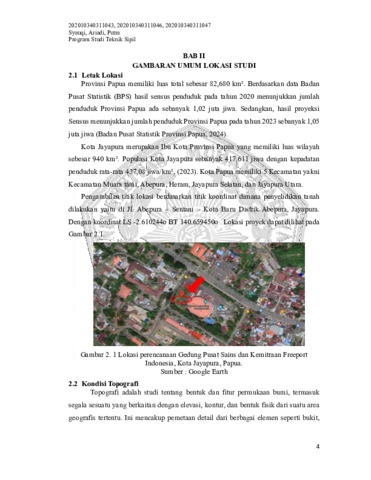

The lecture building of Cenderawasih University is located on Abepura–Sentani–Kota Baru Road, Abepura District, Jayapura, Papua Province. Based on the building function and site classification, the structure is categorized as Risk Category IV, located on medium soil (SD), and classified under Seismic Design Category (SDC) D. The superstructure is designed using a Special Moment Resisting Frame (SMRF) system. Based on the results of structural analysis and calculations, the dimensions of the structural elements are obtained as follows: floor slab thickness of 12 cm and roof slab thickness of 10 cm, both reinforced with Ø10 bars. Secondary beams with dimensions of 30/50 cm use D12 main reinforcement and Ø10 shear reinforcement. Primary beams in the longitudinal direction have dimensions of 40/60 cm, while transverse primary beams are 40/70 cm, both using D22 main reinforcement and Ø10 shear reinforcement. The main columns have dimensions of 70/70 cm with D22 main reinforcement and Ø10 shear reinforcement. The substructure is designed using bore pile foundations with a diameter of 40 cm and a depth of 7 m. The total estimated construction cost is Rp. 16,268,169,816, with a construction duration of 486 days.
