PERENCANAAN GEOMETRIK DAN TEBAL PERKERASAN JALAN RAYA PADA RUAS JALAN DESA GEDUGAN PULAU GILI GENTING KABUPATEN SUMENEP

Alsabea, Putri Inaya (2024) PERENCANAAN GEOMETRIK DAN TEBAL PERKERASAN JALAN RAYA PADA RUAS JALAN DESA GEDUGAN PULAU GILI GENTING KABUPATEN SUMENEP. Undergraduate thesis, Universitas Muhammadiyah Malang.

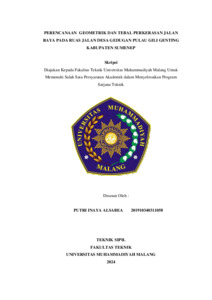

[thumbnail of PENDAHULUAN.pdf]
Preview
Text
PENDAHULUAN.pdf

Download (430kB) | Preview
[thumbnail of BAB I.pdf]
Preview
Text
BAB I.pdf

Download (99kB) | Preview
[thumbnail of BAB II.pdf]
Preview
Text
BAB II.pdf

Download (560kB) | Preview
[thumbnail of BAB III.pdf]
Preview
Text
BAB III.pdf

Download (182kB) | Preview
[thumbnail of BAB IV.pdf] Text
BAB IV.pdf
Restricted to Registered users only

Download (1MB) | Request a copy
[thumbnail of BAB V.pdf] Text
BAB V.pdf
Restricted to Registered users only

Download (86kB) | Request a copy
[thumbnail of LAMPIRAN.pdf] Text
LAMPIRAN.pdf
Restricted to Registered users only

Download (331kB) | Request a copy

Abstract

The planning of this road is carried out on the section of Gedungan Gili Genting Island Highway in Semenep Regency with the aim of boosting the economy of the Giligenting Area, particularly in Gedugan Village. This road leads to Kahuripan Beach, which currently does not meet safety and comfort standards. Therefore, geometric planning and flexible pavement thickness design are conducted using the 2017 Bina Marga Method with the AASHTO 1993 Method. From the geometric road planning, a horizontal alignment is obtained with the first curve located at STA 3 + 500, with a planned speed of 60 km/h, a lane width of 3.5 meters, an outer angle ∆1=30°, and a Spiral Circle Spiral (SCS) curve. Based on the Vertical Alignment calculation, of Concave Vertical Alignment 2 and Convex Vertical Alignment 3. In the flexible pavement thickness design using the 2017 Bina Marga Method, the thickness of the AC-WC layer is 4 cm, the thickness of the AC-BC layer is 6 cm, and the thickness of the upper foundation layer (Class A) is 40 cm, with a total Estimated Budget (RAB) of Rp 4.350.255.857.. Meanwhile, using the AASHTO method, the thickness of the Surface Layer (Laston) is 15 cm, the thickness of the Upper Foundation Layer (Class A Crushed Stone) is 25 cm, and the thickness of the Lower Foundation Layer (Class A Gravel) is 12 cm, with a total Estimated Budget (RAB) of Rp 11.152.036.107.

Item Type: Thesis (Undergraduate)
Student ID: 201910340311058
Keywords: Road Geometry, Flexible Pavement, Bina Marga 2017, AASHTO 1993.
Subjects: Q Science > QA Mathematics
Q Science > QA Mathematics > QA76 Computer software
Q Science > QC Physics
Q Science > QE Geology
Divisions: Faculty of Engineering > Department of Civil Engineering (22201)
Depositing User: 201910340311058 putriinayaalsabea
Date Deposited: 06 Feb 2024 08:25
Last Modified: 06 Feb 2024 08:25
URI: https://eprints.umm.ac.id/id/eprint/3516
